OPENVSWITCH - Playing with Bonding on Openvswitch

Bonding is aggregation multiple links to single link in order to increase throughput and achieve redundancy in case one of links fails.  From what I know about bonding, they are two possibilities to configure it.

The first option is to load bonding module to kernel and use ifenslave utility for its configuration. Configuration steps for Microcore are described here.

If you want to play with bonding configuration, check this lab for reference.

As the tutorial is dedicated to configuring bonding with Openvswitch I am going to focus on this topic. This is the second option how to configure bonding without loading bonding module to Linux kernel.

 Let's say we have two Microcore Linux boxes connected with two links. As usual, our topology is created using GNS3 and Qemu images of Microcore with installed Openvswitch 1.2.2 and Quagga 0.99.20 on the top of Microcore.

topology

Picture 1 - Testing Bonding on Openvswitch

You can download my Openvswitch Microcore Qemu image here.

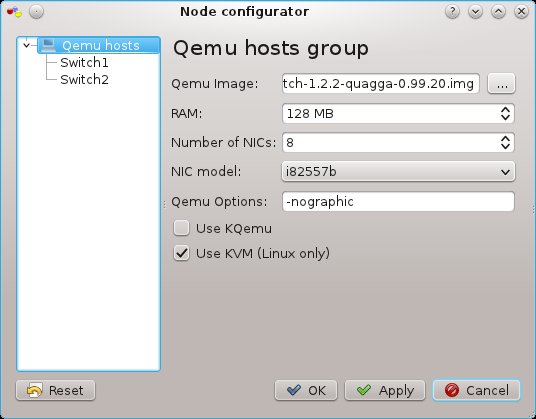

As for Ethernet card I suggest you to use i82557b Ethernet card type and assign at least 128 MB RAM for Microcore appliance. Below is a snapshot of  Qemu host setting.

Picture 2 - QEMU Host Configuration

Part1 - Basic Microcore, Openvswitch and Quagga Configuration

Before we start to configure Openvswitch we should be aware of initial configuration requirement for Openvswitch and Quagga. Openvswitch is not a Cisco switch running  Cisco IOS which you can configure right after device is booted. First you need to create database, configuration files, start services etc.

My Qemu Microcore image with Openvswitch and Quaggae is preconfigured for such things so feel free to use it.

1. Switch 1 configuration - hostname, trunks, vlan interfaces

tc@box:~$ echo "hostname Switch1" >> /opt/bootlocal.sh
tc@box:~$ sudo hostname Switch1

tc@Switch1:~$ sudo su

root@Switch1:~# ovs-vsctl add-br br0
root@Switch1:~# ovs-vsctl add-port br0 vlan10 tag=10 -- set interface vlan10 type=internal
root@Switch1:~# ovs-vsctl add-port br0 vlan20 tag=20 -- set interface vlan20 type=internal

Note: I usually specify list of VLANs to be allowed on trunk link

root@Switch1:~# ovs-vsctl add-port br0 eth0 trunks=10,20
root@Switch1:~# ovs-vsctl add-port br0 eth1 trunks=10,20

Unfortunately if we do it now, we cannot create bond0 interface, later in Part2. In this case a warning message informs us that eth0 and eth1 already exists on bridge br0. Therefore we skip a trunk definition here and we will configure the trunk later together with bonding configuration.

Start Quagga vtysh shell.

root@Switch1:~# vtysh

Hello, this is Quagga (version 0.99.20).

Copyright 1996-2005 Kunihiro Ishiguro, et al.

Switch1# conf t
Switch1(config)# interface vlan10
Switch1(config-if)# ip address 192.168.10.1/24
Switch1(config-if)# no shutdown
Switch1(config-if)#
Switch1(config-if)# interface vlan20
Switch1(config-if)# ip address 192.168.20.1/24
Switch1(config-if)# no shutdown
Switch1(config-if)# do wr
Switch1(config-if)# exit
Switch1(config)# exit
Switch1# exit

Save Microcore configuration.

root@Switch1:~# /usr/bin/filetool.sh -b

Ctrl+S

2. Switch 2 configuration - hostname, trunks, vlan interfaces

tc@box:~$ echo "hostname Switch2" >> /opt/bootlocal.sh
tc@box:~$ sudo hostname Switch2

tc@Switch1:~$ sudo su

root@Switch2:~# ovs-vsctl add-br br0>
root@Switch2:~# ovs-vsctl add-port br0 vlan10 tag=10 -- set interface vlan10 type=internal
root@Switch2:~# ovs-vsctl add-port br0 vlan20 tag=20 -- set interface vlan20 type=internal

Start Quagga vtysh shell.

root@Switch2:~# vtysh

Switch2# conf t
Switch2(config)#interface vlan10
Switch2(config-if)# ip address 192.168.10.2/24
Switch2(config-if)# no shutdown
Switch2(config-if)#
Switch2(config-if)# interface vlan20
Switch2(config-if)# ip address 192.168.20.2/24
Switch2(config-if)# no shutdown
Switch2(config-if)# do wr
Switch2(config-if)#exit
Switch2(config)#exit
Switch2# exit

Save Microcore configuration.

root@Switch2:~# /usr/bin/filetool.sh -b

Ctrl+S

Part2 - Bonding

Now, it is time to start playing game called bonding.  They are not any rules in our game but it is not bad idea to read documentation first. Page number ten could save many question in the future.

http://openvswitch.org/ovs-vswitchd.conf.db.5.pdf

As you can see, they are four bond modes with balance-slb as default mode. Modes are described on page 11.

1. Switch1 and Switch2 configuration for static bonding

root@Switch1:~# ovs-vsctl add-bond br0 bond0 eth0 eth1 trunks=10,20
root@Switch2:~# ovs-vsctl add-bond br0 bond0 eth0 eth1 trunks=10,20

2. Static Bonding Testing

Check bond interface bond0 on Switch1.

root@Switch1:~#ovs-appctl bond/show bond0

bond_mode: balance-slb
bond-hash-algorithm: balance-slb
bond-hash-basis: 0
updelay: 0 ms
downdelay: 0 ms
next rebalance: 9476 ms
lacp_negotiated: false

slave eth1: enabled
may_enable: true

slave eth0: enabled
active slave
may_enable: true

Now do the same for bond0 on Switch2.

root@Switch2:~# ovs-appctl bond/show bond0

bond_mode: balance-slb
bond-hash-algorithm: balance-slb
bond-hash-basis: 0
updelay: 0 ms
downdelay: 0 ms
next rebalance: 7420 ms
lacp_negotiated: false

slave eth1: enabled
may_enable: true

slave eth0: enabled
active slave
may_enable: true

Now, start pinging IP address 192.168.10.2 from Switch1. Ping is supposed to be working. While pinging, start tcpdump to listen on interface ethernet1 of Switch2

root@Switch2:~# tcpdump -i eth1

tcpdump: WARNING: eth1: no IPv4 address assigned
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on eth1, link-type EN10MB (Ethernet), capture size 68 bytes

11:47:07.214753 IP 192.168.10.2 > 192.168.10.1: ICMP echo reply, id 36360, seq 15, length 64
11:47:08.215483 IP 192.168.10.2 > 192.168.10.1: ICMP echo reply, id 36360, seq 16, length 64
11:47:09.215823 IP 192.168.10.2 > 192.168.10.1: ICMP echo reply, id 36360, seq 17, length 64
11:47:10.216846 IP 192.168.10.2 > 192.168.10.1: ICMP echo reply, id 36360, seq 18, length 64
11:47:11.217868 IP 192.168.10.2 > 192.168.10.1: ICMP echo reply, id 36360, seq 19, length 64

<output truncated>

15 packets captured
15 packets received by filter
0 packets dropped by kernel

Interface Ethernet1 sends icmp echo reply messages back to Switch1. As they are not any ICMP echo requests listed in the output, only the interface Ethernet0 receives these ICMP requests coming from Switch1.

My question is, what happens if we shutdown Ethernet0 on Switch2? Will be ICMP requests interrupted and possibly re-forwarded via interface Ethernet0 of Switch1? If yes, how long does it take?

root@Switch2:~# ifconfig eth0 down

Check the bond interface bond0 on Switch2 again. As soon as Switch2 detects failure of its interface, Openvswitch puts slave eth0 do disabled state

root@Switch2:~# ovs-appctl bond/show bond0

bond_mode: balance-slb
bond-hash-algorithm: balance-slb
bond-hash-basis: 0
updelay: 0 ms
downdelay: 0 ms
next rebalance: 7612 ms
lacp_negotiated: false

slave eth1: enabled
active slave
may_enable: true
hash 52: 0 kB load

slave eth0: disabled
may_enable: false

Switch1 cannot detect failure of far end interface Ethernet0. It continues to send ICMP requests to Switch2 via its Ethernet0 interface. Stop ping command and check bond interface bond0 on Switch1. Obviously, Ethernet0 is still enabled in bundle

root@Switch1:~# ovs-appctl bond/show bond0

bond_mode: balance-slb
bond-hash-algorithm: balance-slb
bond-hash-basis: 0
updelay: 0 ms
downdelay: 0 ms
next rebalance: 4007 ms
lacp_negotiated: false

slave eth1: enabled
may_enable: true

slave eth0: enabled
active slave
may_enable: true
hash 133: 0 kB load

We cannot tolerate this behaviour. We need such as mechanism which helps to detect far end failure. Therefore LACP must be deployed in your configuration.

According to wiki, LACP works by sending frames (LACPDUs) down all links that have the protocol enabled. These are two main advantages comparing to static bonding.

1.  Failover when a link fails when the peer will not see the link down. With static link aggregation the peer would continue sending traffic down the link causing it to be lost.

2.  The device can confirm that the configuration at the other end can handle link aggregation. With Static link aggregation a cabling or configuration mistake could go undetected and cause undesirable network behaviour.

It looks like exactly what we want. So do not hesitate and let's go configure bonding with LACP.

3. Switch1 and Switch2 configuration for bonding with LACP

Delete existing bond0 port.

root@Switch1:~# ovs-vsctl del-port br0 bond0
root@Switch2:~# ovs-vsctl del-port br0 bond0

Create a new bond interface.

root@Switch1:~# ovs-vsctl add-bond br0 bond0 eth0 eth1 lacp=active trunks=10,20
root@Switch2:~# ovs-vsctl add-bond br0 bond0 eth0 eth1 lacp=active trunks=10,20

Check bonding on Switch1.

root@Switch1:~# ovs-appctl bond/show bond0

bond_mode: balance-slb
bond-hash-algorithm: balance-slb
bond-hash-basis: 0
updelay: 0 ms
downdelay: 0 ms
next rebalance: 7763 ms
lacp_negotiated: true

slave eth0: disabled
may_enable: false

slave eth1: enabled
active slave
may_enable: true

Notice state of Ethernet0 interface. Remember, we shut-downed Ethernet0 on Switch2. Thanks to LACP, Ethernet0 is disabled in bundle on Switch1. It is awesome!

Note  Even an interface Ethernet0 of Switch1 is disabled in bundle, it remains in up state

root@Switch1:~# ifconfig eth0

eth0      Link encap:Ethernet  HWaddr 00:AA:00:D8:E6:00
inet6 addr: fe80::2aa:ff:fed8:e600/64 Scope:Link
UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
RX packets:112 errors:0 dropped:0 overruns:0 frame:0
TX packets:2030 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:36156 (35.3 KiB)  TX bytes:336741 (328.8 KiB)

4. LACP bonding testing

The last point we want to test is how much time is required for transition for interface in bundle to disabled state, if far end fails. Logically it should depend how often are LACP messages exchanged between peers.

Start tcpdump listening on eth0 of Switch1. Then bring interface eth0 up on Switch2. Right after LACP messages are exchanged via eth0 between Switch1 and Switch2, Ethernet0 interface is brought to enabled state in bundle. See the output below

root@Switch1:~# tcpdump -i eth0 -v

tcpdump: WARNING: eth0: no IPv4 address assigned
tcpdump: listening on eth0, link-type EN10MB (Ethernet), capture size 68 bytes

<LACP message coming from Switch1. Notice System 00:00:00:00:00:00. It means that Switch2 has not known about partner's system yet>

14:00:19.217584 LACPv1, length: 110
Actor Information TLV (0x01), length: 20
System 00:aa:00:85:34:00 (oui Unknown), System Priority 65534, Key 5, Port 6, Port Priority 65535
State Flags [Activity, Aggregation, Default]
Partner Information TLV (0x02), length: 20
System 00:00:00:00:00:00 (oui Ethernet), System Priority 0, Key 0, Port 0, Port Priority 0
State Flags [none]
Collector Information TLV (0x03), length: 16
packet exceeded snapshot

<LACP message sent to Switch2. As Switch1 knows partner ID 00:aa:00:85:34:00 - MAC address of interface eth0 of Switch2>

14:00:19.217914 LACPv1, length: 110
Actor Information TLV (0x01), length: 20
System 00:aa:00:d8:e6:00 (oui Unknown), System Priority 65534, Key 5, Port 6, Port Priority 65535
State Flags [Activity, Aggregation, Synchronization, Collecting, Distributing]
Partner Information TLV (0x02), length: 20
System 00:aa:00:85:34:00 (oui Unknown), System Priority 65534, Key 5, Port 6, Port Priority 65535
State Flags [Activity, Aggregation, Default]
Collector Information TLV (0x03), length: 16
packet exceeded snapshot

<LACP message sent to Switch1. Now, Switch1 knows partner's ID 00:aa:00:d8:e6:00 - MAC address of interface eth0 of Switch1>

14:00:19.220189 LACPv1, length: 110
Actor Information TLV (0x01), length: 20
System 00:aa:00:85:34:00 (oui Unknown), System Priority 65534, Key 5, Port 6, Port Priority 65535
State Flags [Activity, Aggregation, Synchronization, Collecting, Distributing]
Partner Information TLV (0x02), length: 20
System 00:aa:00:d8:e6:00 (oui Unknown), System Priority 65534, Key 5, Port 6, Port Priority 65535
State Flags [Activity, Aggregation, Synchronization, Collecting, Distributing]
Collector Information TLV (0x03), length: 16
packet exceeded snapshot

Explanation

00:aa:00:85:34:00 - MAC address of eth0 interface of Switch2
00:aa:00:d8:e6:00 - MAC address of eth0 interface of Switch1:

Nice! We can see structure of LACP messages but still do not know anything about time required for transition. It is time to check it.

Start pinging 192.168.10.2 from Switch1 and with the help of tcpdump find an interface where packets enter Switch2. In my case it is Ethernet1. Shutdown this interface and cheek the output of ping command. You see, ping is interrupted and it took approximately 50 seconds for ping to be recovered. It means that for 50 seconds interface Ethernet1 of Switch1 had been in enabled state. It is too much. It must be a way to short this time to acceptable level.

Issue the command below on Switch1.  LACP statistic can be found there.

root@Switch1:~# ovs-appctl lacp/show bond0

lacp: bond0
status: active negotiated
sys_id: 00:aa:00:d8:e6:00
sys_priority: 65534
aggregation key: 5
lacp_time: slow

slave: eth0: current attached
port_id: 6
port_priority: 65535

actor sys_id: 00:aa:00:d8:e6:00
actor sys_priority: 65534
actor port_id: 6
actor port_priority: 65535
actor key: 5
actor state: activity aggregation synchronized collecting distributing

partner sys_id: 00:aa:00:85:34:00
partner sys_priority: 65534
partner port_id: 6
partner port_priority: 65535
partner key: 5
partner state: activity aggregation synchronized collecting distributing

slave: eth1: current attached
port_id: 5
port_priority: 65535

actor sys_id: 00:aa:00:d8:e6:00
actor sys_priority: 65534
actor port_id: 5
actor port_priority: 65535
actor key: 5
actor state: activity aggregation synchronized collecting distributing

partner sys_id: 00:aa:00:85:34:00
partner sys_priority: 65534
partner port_id: 5
partner port_priority: 65535
partner key: 5
partner state: activity aggregation synchronized collecting distributing

Focus on lacp-time parameter which is set to slow. According to documentation it is.

The LACP timing used on this Port. Possible values are fast, slow and a positive number of milliseconds. By default slow is used. When configured to be fast LACP heartbeats are requested at a rate of once per second causing connectivity problems to be detected more quickly. In slow mode, heartbeats are requested at a rate of once every 30 seconds.

That is exactly what we need. Changing lacp_time from slow to fast should help us to detect failure of peer's interface more quickly.

5. Switch1 and Switch2 configuration for bonding with LACP and lacp time set to fast

Delete existing bond interface bond0.

root@Switch1:~# ovs-vsctl del-port br0 bond0
root@Switch2:~# ovs-vsctl del-port br0 bond0

Create a new bond interface.

root@Switch1:~# ovs-vsctl add-bond br0 bond0 eth0 eth1 lacp=active other_config:lacp-time=fast trunks=10,20
root@Switch2:~# ovs-vsctl add-bond br0 bond0 eth0 eth1 lacp=active other_config:lacp_time=fast trunks=10,20

Save configuration.

root@Switch1:~# /usr/bin/filetool.sh -b
root@Switch2:~# /usr/bin/filetool.sh -b

Ctrl+S

If you want to check interval of sending LACP messages, start tcpdump on Switch2 while pinging IP address of VLAN interface of Switch2 from Switch1. Now, LACP message are sent every 1 second.

root@Switch2:~# tcpdump -i eth0

tcpdump: WARNING: eth0: no IPv4 address assigned
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on eth0, link-type EN10MB (Ethernet), capture size 68 bytes
21:42:25.525007 LACPv1, length: 110
21:42:26.529846 LACPv1, length: 110
21:42:27.532092 LACPv1, length: 110
21:42:28.534532 LACPv1, length: 110
21:42:29.543080 LACPv1, length: 110
21:42:30.545620 LACPv1, length: 110
21:42:31.547848 LACPv1, length: 110
21:42:32.550717 LACPv1, length: 110
21:42:33.551271 LACPv1, length: 110
21:42:34.553382 LACPv1, length: 110

10 packets captured
10 packets received by filter
0 packets dropped by kernel

6. LACP bonding testing with enabled lacp_time=fast option

Start pinging 192.168.10.2 from Switch1 and find interface receiving ICMP echo requests on  Switch2. In my case it is interface eth0. While pinging,  shutdown this interface and check ping statistic

root@Switch1:~#ping 192.168.10.2

PING 192.168.10.2 (192.168.10.2): 56 data bytes
64 bytes from 192.168.10.2: seq=0 ttl=64 time=1.810 ms
64 bytes from 192.168.10.2: seq=1 ttl=64 time=0.940 ms
64 bytes from 192.168.10.2: seq=2 ttl=64 time=1.610 ms
64 bytes from 192.168.10.2: seq=3 ttl=64 time=0.755 ms

<output truncated>

--- 192.168.10.2 ping statistics ---
27 packets transmitted, 24 packets received, 11% packet loss
round-trip min/avg/max = 0.755/3.378/48.484 ms

You see, three packet are lost. That is what we can call link redundancy if one of links fails.

Following  commands helpful during troubleshooting.

Show MAC address table.

root@Switch1:~# ovs-appctl fdb/show br0

List ports.

root@Switch1:~# ovs-vsctl list port

END.

16 thoughts on “OPENVSWITCH - Playing with Bonding on Openvswitch

    • I haven't done this with OVS, but it IS possible to do it with the standard bonding module from Linux's kernel and GRE tunneling (or OpenVPN, tried both). The routing is a bit tricky, especially when you have different gateways, as the bonding module doesn't normally support this...

      I'm also really interested in seeing if it's possible to do bonding (of packets, not sessions) of WAN links.

  1. Thanks, that was a really interesting article. I was wondering if the bonding mode from open vswitch works as the bonding from the kernel, I mean, at the packet level, or does it always send all of a "session" (one download for example) through one of the links?

  2. Hi, great post!
    I have a question....I can't get your lab running. I want to have a 802.1q-Trunk up and running. I'm using the following commands:
    - 2 openvswitch-microcore Instances connected via eth0 eth0
    On both devices:
    - "ovs-vsctl add-br br0"
    - "ovs-vsctl add-port br0 eth0 trunks=10,20"
    - "ovs-vsctl add-port br0 vlan10 tag=10 -- set Interface vlan10 type=internal"
    - given on both sides ip addresses onto the interface vlan10 out of the vlan 10

    I'm not able to ping over the trunk...could you please give me some hints? Do I miss something?
    Regards, chris

    • Your configuration seems to be good.

      Check this:

      0. Are IP addresses assigned from the same subnet? Do you bring vlan10 interface up? Can you ping vlan10 interface itself?
      1. Do you use Windows or Linux? Is your Qemu patched for UDP tunnels?
      2. If they are two Microcore hosts (without Openvswitch configuration) you can ping between hosts?

      If your answers are yes, you could try:

      0. Change ethernet card type in GNS3 settings. The default is e1000, try to use i82559er. Make more tests with other cards.
      1. Setup two Microcore hosts and test 802.1q without Openvswitch intervention. Use vconfig utility.

      • Thank you for your answer!
        Well..i just wanted to test my setup in GNS3 before I set it up in real...
        In short : I configured it in real this weekend (Debian Squeeze / Cisco 2960) witch LACP / Etherchannel and 802.1q and it works like a charm.
        So it has to do with the GNS3 setup, what exactly was wrong: I can't tell you.

        Setup not working :
        - 2 openvswitch-microcore (4.0) Instances / Openvswich 1.2.2
        --> all kind of Ethernet Cards tested
        - Host : Windows 2007 Enterprise / GNS3 0.8.2 Beta2
        anyway...this setup seems a bit shaky. Sometimes basic stuff works (802.1q Trunk)...sometimes not.
        Sorry - at the moment I don't have the time to figure out whats wrong..as soon as I know I'll give you feedback.

        Best Regards,
        Chris

        • well, you use GNS3 on Windows so Qemu is patched for UDP tunnels by GNS3 staff. Personally, I noticed problem with em2 interface when e1000 is used. I use Qemu 0.14.1.
          One thing you can try is to change Qemu version - 0.11.0 was pretty stable. It is available on GNS3 Download page.

          Good luck!

  3. Hi, please, what's the root password of linux-microcore-4.0-openvswitch-1.2.2-quagga-0.99.20.img ?
    I've try "root", "password" and without password, none of then works

    Sorry for my bad english

  4. Brezular, What a great set of posts (all parts 1-4 ...). I built on elements of your post to do the following: I adapted to openvswitch config with 2 redundant switches connected by bonded switch vports with 2 Oracle Real Application Cluster nodes RAC node bonded private interconnect connected criss-cross over the switches with the bonded vport interswitch link as the "pathway of last resort" so to speak. Here is my step by ste howto for hooking up 2 RHEL 5.8 (actually CentOS) x64 11gR2 Oracle RAC nodes to an HA 2-switch solution built with openvswitch and help from your post above! Thanks! Enjoy!

  5. i have 4 physical NICs on the box, eth0 and eth2 connection to switch1 and eth1 and eth3 to switch2. I have configured LACP bonding on the ovs and on both physical switches. everything seems to work ok except eth1,eth3 (to switch2) are active and eth0,eth2 are in disabled mode. i would like this to be opposite to links to switch1 are enabled and eth1,eth3. Are there any setting to tweak which links get disabled? TIA

  6. Thanks for a comprehensive introduction to OpenVswich. Using your Core image, I was able to configure this in the latest GNS3 V1.2.1 and test LACP interoperability with a L2-IOU switch.

Leave a comment

Your email address will not be published. Required fields are marked *
